Overview
Product Attributes
Model No.: DMS-XX-XXX-321Brand: ANTENKInterface Type: Ac/DcHousing: PlasticPin: BrassPoles: OtherApplication: OtherCertification: OtherGender: MaleMaterial: BrassSupport Card Number: OtherOperating Frequency: High FrequencyClassification: Other
Supply Ability Additional Information
Packaging: bag packing,Tube packing, reel packingProductivity: 100000K/monthTransportation: Ocean,Air,ExpressPlace of Origin: ChinaSupply Ability: 100000K/monthCertificate: ISO9001HS Code: 8536909000Payment Type: T/T,Paypal,Western UnionIncoterm: FOB,CIF,EXW,FCA
Packaging Delivery
Selling Units:
Bag/Bags
Package Type:
bag packing,Tube packing, reel packing

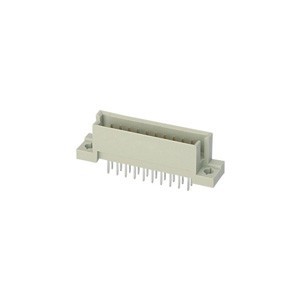

Shenzhen Antenk Electronics Co., Ltd. introduced a DIN41612 Vertical Plug Type 1/3R Connectors-Inversed 30 Positions electronic product .
European socket is one of the connectors. According to the production and processing technology, there are many types of connectors. For example, the pin headers form a board-to-board connection system, the rubber pins form a wire-to-wire connection system, and the European sockets can form a wire. For the connection between the plates, the main signal is the electrical signal.
SPECIFICATION
Current Rating: 2.0Amp
Insulation Resistance: 1000MΩ min.at DC 100V
Contact Resistance: 20mΩ max
Withstand Voltage: AC 1000V For 1 Minute
Operating Temperature: -55 degree to plus 105 degree
Contact Material: Brass
Contact Plating: Au or Sn Over Ni
Insulator Material: PBT plus 30 percent GF UL 94V-0
Insertion Force: 30 pin max.28N
Withdrawal Force: 0.15N min.per individual contact
